Side Door Apex Log Cabin 292 - Bespoke, Double Door
The gable wall can be up to 16' wide (5.0m). The length of the side wall can be up to 20' (6.0m) or longer. A 3'3" deep roof canopy with front posts is available as an option. The price includes double glazing, decorative felt tiles, a double door and a large double opening window. You can choose the standard design with a door and window in the side wall or you can position the door and window anywhere at the same price. Options include a choice of Georgian style or low level large pane glazing. These substantial log cabins feature superb quality joinery doors and windows and a choice of 45mm or 70mm thick wall logs. A factory finished preservative treatment is also available as an option. Detailed instructions are supplied for DIY self assembly. We offer fitting as a low cost option in many areas. The guttering is not supplied.
- Individually made to order. If you choose a non standard door and window position we will contact you before your order is processed to confirm your requirements.
- Gable wall any width up to 16'5" wide or 5.0m - you just pay for the next size up, prices are in 20" or 500mm increments
- Side wall any length up to 19'8" or 6.0m or longer - you just pay for the next size up, prices are in 20" or 500mm increments
- Doors and window glazed with glass (no plastic, acrylic, styrene or perspex)
- Premium double glazed doors and windows with 24mm thick argon filled double glazing units, 16mm air gaps, a 1.1 U value and fitted with rubber weatherstrips to reduce draughts
- Doors and windows are joinery made with fully profiled timbers and morticed and tenoned joints throughout
- Double hinged doors, fully glazed with high security mortice lock and lever handles in a chrome or brass finish
- Double door width 4'0" (1210mm)
- Double door height 5'11" (1800mm)
- Durable aluminium door threshold
- 1 double opening window with 2 outward opening side hinged sashes
- Window with Georgian glazing 4'0" wide x 3'9" high (1210mm x 1140mm)
- Window with large pane plain glazing 4'0" wide x 5'0" high (1210mm x 1530mm)
- All timber used in the construction of this log cabin originates from sustainable forests
- As with most log cabins, the roof is supplied unassembled with the rafters and roof boards cut to size

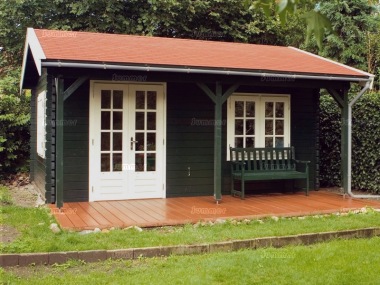

- These log cabins are untreated as standard - the pictures show the optional preservative treatments available
- 45mm or 70mm thick tongued and grooved wall logs
- Foundation beams for 45mm log cabins ex 3"x3" (70mm x70mm) pressure treated (lifetime preservative treatment)
- Foundation beams for 70mm log cabins ex 4"x3" (90mm x70mm) pressure treated (lifetime preservative treatment)
- Substantial timber floor
- Floor joists ex 3" x 2" (70mm x 45mm) pressure treated (lifetime preservative treatment)
- 19mm thick tongued and grooved roof boards (finished size after machining)
- Decorative mineral felt tiles in a choice of colours included as standard
- Weatherproof L-shaped double fascia boards to front and rear
- Eaves height 2.15m (7'1")
- Ridge height varies according to width of cabin
- Ridge height 2.8m or 9'2" (3.0m or 9'10" wide cabins)
- Ridge height 3.0m or 9'10" (4.0m or 13'1" wide cabins)
- External roof overhang approximately 12" to all sides (300mm)
- External cabin width (gable wall) - priced up to 2.5m (8'2"), 3.0m (9'10"), 3.5m (11'6"), 4.0m (13'1"), 4.5m (14'9") or 5.0m (16'5")
- External cabin length (side wall) - priced up to 4.0m (13'1"), 4.5m (14'9"), 5.0m (16'5"), 5.5m (18'1") or 6.0m (19'8")
- External cabin widths do not include the optional 1.0m deep roof canopy (3'3")
- External cabin sizes do not include the interlocking log corners
- Internal cabin sizes - subtract 90mm if the logs are 45mm thick, subtract 140mm if the logs are 70mm thick
- This building is easy to deliver if access is restricted - all sections will pass through a normal single door
MADE TO MEASURE: These log cabins can be individually designed to suit your exact needs at little or no extra cost. Additional doors, additional windows and internal partitions are standard options. The price normally increases only if the number of doors or windows is increased. To see our standard door and window layouts look at DESIGN OPTIONS elsewhere within this product description. If none of the standard designs are suitable just contact us. You can phone us 7 days a week on 01603 721590 or send a sketch of your design by e-mail, fax or post.
JOINERY DOORS & WINDOWS: These log cabins feature joinery made door leaves and window sashes with morticed and tenoned joints throughout. This traditional jointing process is commonly used in the housebuilding industry when timber windows and doors are specified. A rebate or mortice is cut out in one piece of wood which precisely matches a tongue or tenon cut in the other piece of wood. Morticed and tenoned joints are the strongest type of joint used in the construction of wooden windows and doors. High quality handles, locks and hinges are also included.
HIGH PERFORMANCE DOORS AND WINDOWS WITH WEATHERSTRIPS: Our high performance premium window and door frames feature weatherstrips to reduce draughts. Weatherstrips are rubber gaskets which are fitted to the door and window frames. The weatherstrips are fitted in the rebates between the fixed outer frames and the hinged parts i.e. the window sashes and door leaves. As the doors and windows are closed the weatherstrips are compressed to form a seal. Heat loss is significantly lower through windows and doors which are fitted with weatherstrips.
DOUBLE GLAZING: Our double glazed doors and windows ensure that your log cabin is warmer and cheaper to heat. We recommend double glazing if you want to use your cabin all year round. Double glazing also provides additional sound insulation. If you expect to use your cabin frequently and often for prolonged periods we also recommend floor and roof insulation. Insulation ensures a more comfortable environment on the hottest days in the summer and the coldest days in winter.
LOW LEVEL GLAZING: Low level glazing provides a panoramic view from inside your garden room so you can appreciate your garden fully. With low level glazing you can enjoy a better view of the garden, especially at sites where the garden slopes away.
HEAVY DUTY TONGUED AND GROOVED FLOOR: This cabin includes a heavy duty timber floor with tongued and grooved floor boards and substantial floor joists. Skirting boards are also included to ensure a neat internal finish. The floor joists and tongued and grooved boards are supplied loose for fast assembly on site. Unlike many log cabin floor kits, all timber is cut to size which saves time during installation. It also ensures that there are no visible joins in the finished floor. The floor is assembled quickly with no visible joints. With some cheaper cabins the boards must be cut to fit on site. This takes much longer and many of the joins are visible afterwards.
PRESSURE TREATED FOUNDATION BEAMS: Substantial foundation beams are laid on the base to support the walls. This ensures that the wall logs are not in contact with the ground. The foundation beams are pressure treated for durability. Pressure treatment is a lifetime preservative treatment. The preservative is forced into the timber under pressure in a vacuum and penetrates below the surface. All other treatments apply a coat of stain to the surface of the timber only. With pressure impregnated timber, the chemicals are permanently fixed in the wood. Tanalith E is the most popular preservative used so pressure treated wood is often described as tanalised. With the foundation beams this log cabin can be built without a floor. If required a timber or concrete floor can be laid inside after the walls and roof have been fitted.
DECORATIVE FELT TILES: Mineral coated bitumen felt tiles are an attractive and durable roofing material which is far more hardwearing than standard roofing felt. Traditionally used for small buildings only in the UK, felt tiles are used much more in Scandinavia and North America where they are used widely in general housebuilding. The sophisticated design features a strip of almost dry bitumen adhesive. This ensures that every tile is stuck to the tile below within a few days for improved waterproofing and windproofing. All fixings are covered by the next row of felt tiles, partly to ensure a neat appearance with concealed fixings but mainly to protect the fixing holes from any possible moisture. Mineral felt tiles are made using asphalt with a bitumen binder and an external covering of durable and attractive natural stone chips. Mineral felt tiles are often described as felt shingles because the design resembles traditional cedar shingles.
SIZES - DEPTH AND WIDTH: The sizes are listed alongside the price. The first dimension listed is the depth and the second dimension is the width. The depth refers to the angled gable walls to each side. The width refers to the front and rear walls including the door wall. The sizes listed are external wall sizes. These sizes do not include the roof overhang. Many others quote the overall roof size which is much larger.
- Widths over 16'5" or 5.0m or lengths over 19'8" or 6.0m (prices on request)
- Choice of 45mm or 70mm thick tongued and grooved wall logs
- Choice of the standard design or with the door and window positioned anywhere at the same price. The standard design features a side door and window with the door to the left or right.
- Choice of Georgian style glazing or large pane plain glazing
- Choice of felt tile colours
- Choice of brass or chrome plated door and window handles
- 3'3" or 1.0m deep roof canopy with 3 front posts
- Additional opening windows
- Additional doors
- Internal partitions
- Internal doors
- Factory finished translucent wood stain treatment in a choice of one colour or two colours with the doors and windows being painted a different colour to the wall logs and roof
- Pressure treated timber in a green or brown finish and with a choice of unpainted or factory finished doors and windows
- Microporous preservatives delivered only
- Underfloor insulation
- Roof insulation
TRANSLUCENT WOOD STAIN TREATMENT - FACTORY FINISHED: This high quality preservative finish is professionally spray applied in the factory to both sides of the timber. The cabin is treated inside and out in a choice of colours. You can choose one or two of our colours. The doors and windows can be sprayed the same colour as the wall logs and roof or painted a different colour. Treatment of the roof includes the rafters and boards. Microporous woodstains offer superior protection plus greater durability. Microporous woodstains are impervious to water but not to water vapour, which allows the wood to breathe. Colours are only as accurate as reproductive techniques allow.
PRESSURE TREATED TIMBER: Pressure treated wall logs and roof timbers with a choice of a green or brown finish. The doors and windows can be supplied unpainted or factory finished with a semi opaque microporous paint treatment. Pressure treatment is a lifetime preservative treatment. The preservative is forced into the timber under pressure in a vacuum and penetrates below the surface. All other treatments apply a coat of stain to the surface of the timber only. With pressure impregnated timber, the chemicals are permanently fixed in the wood. Tanalith E is the most popular preservative used so pressure treated wood is often described as tanalised. Pressure treated or tanalised wood is almost colourless except for a slight green tint caused by the copper content in the preservative. No further preservative treatment is ever needed. However, if you want a coloured finish you can paint over pressure treated or tanalised wood with normal wood preservative in any colour.
MICROPOROUS PRESERVATIVE - DELIVERED TO YOUR DOOR: Our quality microporous preservatives are impervious to water but not to water vapour. This allows the wood to breathe. You can order up to 3 separate colours if required. At least two coats are normally required with a further coat at periodic intervals.
Our 3 star preservative is practical and affordable with a choice of 4 colours. It covers around 10 square metres per litre and normally lasts 1-2 years before a further coat is required.
Our 4 star preservative is a high quality preservative which covers around 9 square metres per litre and normally lasts 2-5 years before a further coat is requred. It is available with a choice of 12 colours.
Our 5 star preservative is a deluxe high build preservative which can be used to achieve a stunning finish. Each extra coat increases the colour and sheen. It covers around 8 square metres per litre and normally lasts 2-5 years before a further coat is required. It is available with a choice of 12 colours.
Based on average coverage five litres of our 4 star preservative is enough for two coats on an 8'x10' shed or an 8'x8' log cabin. Ten litres is enough for three coats on a 10'x16' shed or a 12'x10' log cabin. Coverage varies according to the smoothness of the surface and the porosity of the timber. We recommend that you order more than you need to be sure that you have easily enough. All of these preservatives are safe for use with children and pets. These microporous preservatives are only available when you purchase a Summer garden building or if you purchased a Summer building in the past. Prices include free mainland delivery to England, Wales and southern Scotland. Colours are only as accurate as reproductive techniques allow.
WATERPROOF CLEAR SEAL - DELIVERED TO YOUR DOOR: Our hardwearing clear seal is ideal as a clear varnish for bare timber or as a waterproof top coat for painted wood and pressure treated timber. It is also ideal as a waterproof floor varnish, especially the polyurethane clear seal. The smooth and shiny finished surface is waterproof and easy to clean. Available in a choice of acrylic or polyurethane, these colourless water based coatings are almost odourless and recommended for smooth planed timber only. One coat is normally required as a sealing top coat on painted or treated timber. A minimum of two coats are normally required on untreated wood. Up to three coats may be required for floors. An unsealed timber floor quickly shows muddy boot marks and other dirt. For best results a floor should be treated at the earliest opportunity while the timber is new and clean. On average five litres of our 5 star clear seal is enough for three coats on a 12'x12' floor, two coats on the walls of an 8'x8' log cabin or one coat on the walls of a 12'x16' log cabin. We recommend that you order more than you need to be sure that you have easily enough. The price includes free mainland delivery to England, Wales and southern Scotland.
UNDERFLOOR INSULATION: The underfloor insulation is designed to suit our timber floor. The rigid insulation boards are suspended between the floor joists and above the ground. The top face of the insulation is just below the floorboards. The solidity of the floor is unaffected by this design. The internal appearance is also unchanged with attractive and durable tongued and grooved boards. Sufficient fixings are supplied to ensure that the insulation is suspended at the optimum height. Detailed instructions are supplied. The floor insulation used is 50mm thick polystyrene which is certified by the British Board of Agrement.
ROOF INSULATION: The roof insulation is laid over the roof boards and below the roofing felt. This ensures that the internal appearance is unchanged with attractive tongued and grooved boards visible inside. No internal lining boards are required. The roof insulation kit includes rigid foam boards which are lightweight and easy to install. Longer felt nails are included for fixing the roofing felt or felt tiles through the insulation. Timber battens are also included to retain the insulation boards and to conceal the exposed edges. Detailed instructions are supplied. The roof insulation is 50mm thick polyurethane foam with reflective silver alloy laminate facings on both sides. It is certified by the British Board of Agrement.
INTERNAL PARTITIONS: Internal partitions can be positioned almost anywhere to suit your individual requirements. It is best to specify the exact position in advance so that the internal walls are built into the external walls for maximum stability and strength. If required, internal doors can be placed in a partition. It is less important to specify the internal door position in advance although it is easier to install if the door opening is pre-cut.
RECYCLED PLASTIC BASE KITS: Our durable eco-grid and eco-paving base kits are an affordable alternative to slabs or concrete. Lightweight and easy to install within a few minutes, these 100% recycled polypropylene pavers simply click together with no fixings needed. Designed to spread weight these lightweight pavers are stronger and longer lasting than a timber floor. Extensive preparation is not normally required - just level the soil and lay the pavers directly on the soil. No sand or shingle is required. Weed membranes are not needed below timber floors. The pavers interlock for greater rigidity. Unlike paving or concrete our plastic bases are self draining and fully relocatable. Where space permits the base is normally laid full size but if required in a tight location the pavers can be cut to size with no loss of structural integrity. The base is normally a few inches larger than your building. Fast delivery within 3-5 days ensures that you can start work quickly.
ECO-GRID BASE KITS: Our eco-grid plastic bases can support up to 150 tonnes per square metre. Each eco-grid paver is 472mm x 472mm and 40mm thick with an immensely strong 60mm hexagonal cell structure. Eco-grids can be laid on soil or shingle. Integral pegs on the underside help to level the base grids more easily. If the sub-base is concrete or a similar hard surface we recommend our eco-paving which features a flat underside.
ECO-PAVING BASE KITS: Our eco-paving is stronger, less brittle and more difficult to damage than concrete paving slabs. The pavers have a strong grid structure underneath and the surface looks similar to concrete slabs. We recommend eco-paving bases for larger sheds and workshops, log cabins, commercial use and any other heavy duty applications. It is also recommended if the sub-base is concrete or a similar hard surface, because the pavers feature a flat and level underside. Eco-paving can also be laid on soil or shingle. Supporting up to 200 tonnes per square metre, each eco-grid paver is 385mm x 385mm and 40mm thick.
BURGLAR ALARM: This simple and effective battery operated burglar alarm kit is easy to install in any wooden garden building. The main panel features a digital keypad and a powerful built-in siren. Two pre-wired door contacts are also included complete with a length of cable which plugs into the main panel. A 9 volt PP3 alkaline battery is required, which is not supplied with the kit. The alarm is easy to set using the digital keypad. A delay allows plenty of time to enter or leave the building after setting the alarm. Once the alarm has been armed it will be triggered by opening the door or tampering with the wiring. When the alarm is activated the siren emits a powerful and unpleasant sound to deter intruders.
SOLAR POWERED LIGHTS: These ingenious and affordable solar powered lights are easy to install with no mains wiring and they cost nothing to run. During the day the externally mounted solar panel converts daylight into electricity and recharges the batteries. The solar panel is weatherproof and suitable for outside use. It is normally positioned high on the walls of your log cabin or on the roof. Our solar internal lights solve the problem of seeing inside your log cabin at night. Our solar security lights illuminate the approach to your log cabin at night and may also deter burglars. After dusk the passive infra red movement detector switches itself on when it detects movement. The more expensive solar lights are brighter and stay on for longer.
- Delivery is normally between 6 and 9 weeks after order.
- Pressure treated log cabins may be a week or two longer.
- Our log cabin prices include all delivery charges - unlike others we do not add delivery charges during the checkout process.
FREE CRANE OFFLOAD: The delivery lorry normally includes a crane to unload your log cabin quickly and easily without assistance. There is normally one pack which is unloaded on the drive or verge at the front of your property. Pack sizes vary from around 3.5m long for a small cabin to 5.5m long for a larger cabin. The packs are polythene wrapped and securely strapped while in transit but after the pack is opened the individual components are easy to carry. The wall logs can be carried one or two at a time and all packages are designed to pass through a normal single door.
RESTRICTED ACCESS: The delivery vehicle is a large lorry, typically around 50' or 15m long and 9' or 2.7m wide, which is unloaded from the side. If there is no suitable unloading area at your property the driver can park several hundred yards away and carry the cabin with the forklift. The fork lift can carry the cabin sideways or end on so it can carry a long pack up a narrow lane. Although the tyres are all terrain the fork lift requires a firm and flat route from the parking area to your property with no steps or steep slopes. With advance warning we can normally overcome most access restrictions, often at no extra cost. Please contact us if you have any concerns regarding the access at your site.
DELIVERY TO SCOTLAND: Although southern Scotland is inside our normal delivery area we can also deliver to other parts of Scotland. The delivery period may be a week or two longer and there may be additional delivery costs. Please phone 01603 721590 for further details.
- All log cabin prices include VAT.
- Pay only 30% deposit when you order this log cabin by phone or online.
ORDER BY PHONE: You can pay with a debit or credit card. To order phone us on 01603 721590 seven days a week. You can pay in full or pay a deposit only. You can pay a minimum 30% deposit with order or pay a bigger deposit if you prefer.
ORDER ONLINE: You can pay with a debit or credit card. We also accept password protected online payments using Verified by VISA or Mastercard SecureCode. You can pay in full or pay a deposit only. You can pay a minimum 30% deposit with order or pay a bigger deposit if you prefer.
METHODS OF PAYMENT: We accept most major credit cards and debit cards including VISA, MasterCard, VISA Delta, VISA Debit, MasterCard Debit, Electron, Solo, Switch, Maestro and UK Maestro. We also accept secure online payments using Verified by VISA or MasterCard SecureCode. We do not accept American Express or Diners Club cards at present.
SCHOOLS, COUNCILS AND BUSINESSES: We supply many schools, local councils and businesses both large and small. The prices and terms are the same so you can order online if you wish. If you want to pay by BACS transfer or company cheque you will need to order by phone.
- Low cost installation is available in most areas
- Low fixed rates
- Payment on completion
THOUSANDS OF SATISFIED CUSTOMERS: Since we were established in 1981 we have fitted buildings for thousands of customers at unbeatable prices. Our specialist fitters have agreed to fit buildings in your area at low fixed rates in return for regular work. Payment is due on completion. To order online just add your chosen fitting option to your shopping basket before you proceed to the checkout. To order by phone just phone us 7 days a week on 01603 721590.
LOW PRICES FOR BASELAYING AND INSTALLATION: Our unique low cost installation service is available in most areas. To see the prices in your local area just enter the first half of your postcode at the top of every page or CLICK HERE. If available our installation service is offered alongside the building prices. To see the prices just click on the blue "i" symbol next to each fitter.
NO FITTERS IN YOUR AREA? If you cannot see any fitters in your area please phone us for a quotation. If you experience any other problems, for example entering your postcode or finding the fitting prices just contact us. You can phone us on 01603 721590. Lines are open 7 days a week and our expert advisers are always happy to help.
FITTERS & BASELAYERS REQUIRED - REGISTER FREE: Give your business a boost - we can put you in touch with customers in your local area! Register now - its free! We need more fitters and base layers in all areas across England, Scotland and Wales. This free service is so simple - it only takes a few minutes to register. Just phone us on 01603 721590 or CLICK HERE to apply online.
